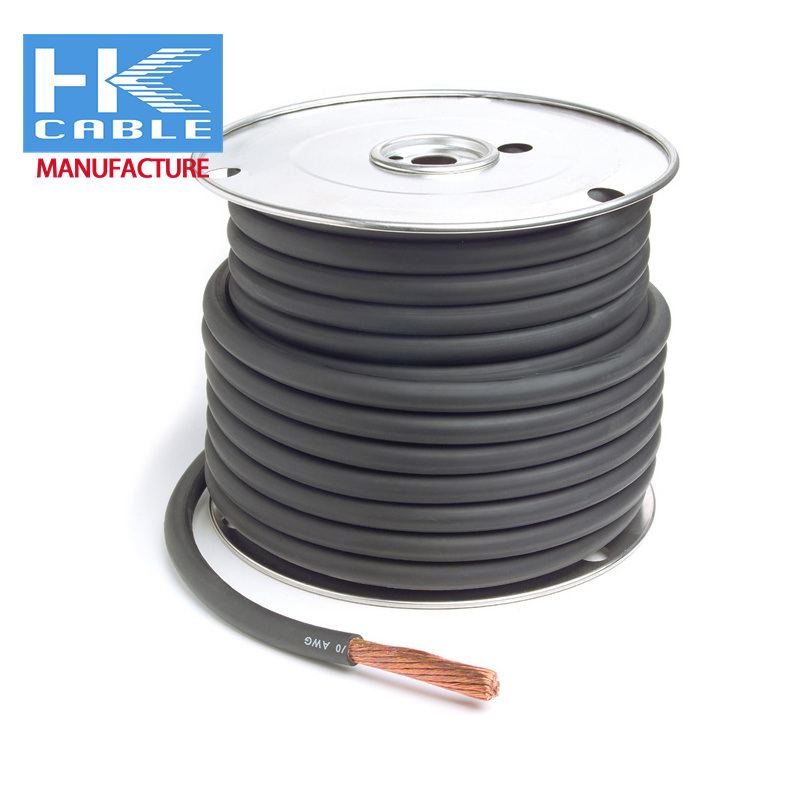

WELDING CABLE

WELDING CABLE

APPLICATION:

Designed as secondary voltage resistance welding cable leads, Battery cables, Temporary power uses, Power supply applications not exceeding 600V AC.

CONDUCTOR: 6 AWG- 4/0 AWG Stranded bare copper flexible, fully annealed, Class K, Bare-copper.

INSULATION: Chlorinated Polyethylene (CPE) Lead free

COLOR: Black

TEMPERATURE RANGE: -40°C to 90°C Dry, 90°C Wet
Oil and Water Resistant Non-Marking Jacket, Lightweight & Very Flexible at Low Temp.

VOLTAGE RATING: 600V rms, Maximum
INDUSTRY APPROVALS: ASTM B-172, National Electrical Code 630, ROHS

Conductor (AWG or kcmil)	Conductor Stranding(#/AWG)	Nominal InsulationThickness (in)	Nominal OverallDiameter(in)	Weight per 1000 ft. (lbs)	Nom. DCRΩ/M’
6	266/30	0.080	0.362	145	0.41
4	420/30	0.080	0.418	205	0.26
3	525/30	0.080	0.455	253	0.21
2	644/30	0.080	0.486	295	0.17
1	833/30	0.080	0.522	357	0.13
1/0	1026/30	0.090	0.582	456	0.11
2/0	1323/30	0.090	0.640	555	0.08
3/0	1666/30	0.090	0.674	650	0.06
4/0	2052/30	0.090	0.755	764	0.05

Note: All dimensions and weights are subject to industry standards and tolerance unless otherwise noted

FAQ:

1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
